Product description:
The 1st shield is bonded laminated aluminum tape, the second shield is 65% aluminum wire braid; jelly or flooded compound is added before outer jacket extrusion. Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. Outer jacket is 70 degree PVC or PVC flame retardant material.
Applications:

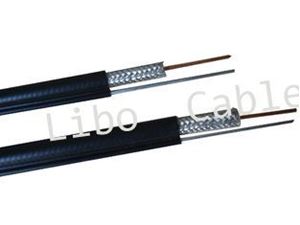

RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.15 aluminum braid wire, 4ends x16 carry, pitch 25mm, 60% coverage.
3rd shield: normal aluminum foil.
Jelly or flooded compound is added before jacket extruding.
PVC Jacket:
Nominal diameter over jacket:0.278"(7.06mm)±0.008"(0.2mm)
Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.
